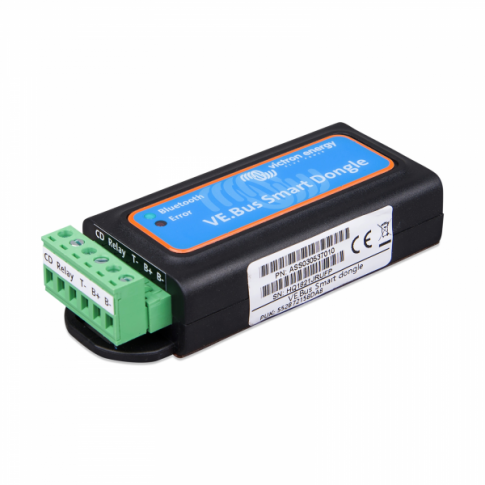

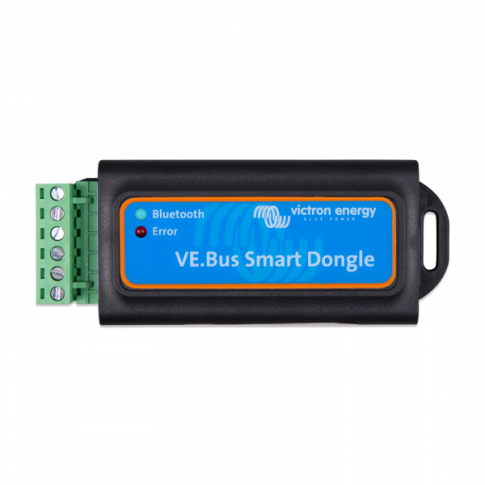

Victron VE.Bus Smart Dongle for Inverter/Chargers

The Victron VE.Bus Smart Dongle adds Bluetooth monitoring and control to compatible Victron inverter/chargers and inverters with a VE.Bus port.

Using VictronConnect, customers can view operating data, warnings and alarms, switch between On, Off and Charger Only, and adjust the AC input-current limit. The dongle also measures battery voltage and temperature, allowing this data to be shared with the connected inverter/charger or a VE.Smart Network. An RJ45 UTP cable is required and sold separately.

Key Features

• Bluetooth monitoring through VictronConnect
• On, Off and Charger Only controls
• Adjustable AC input-current limit
• Battery voltage and temperature sensing
• Supports VE.Smart Networking and Instant Readout

Specifications

Compatibility

Compatible with supported Victron Multi, MultiPlus, MultiPlus-II, MultiGrid, Quattro and Phoenix Inverter models equipped with a VE.Bus port.

Connection Note

Connect the dongle to the battery using the supplied fused power leads and to the inverter or inverter/charger using a straight RJ45 UTP cable. The RJ45 cable is not included.

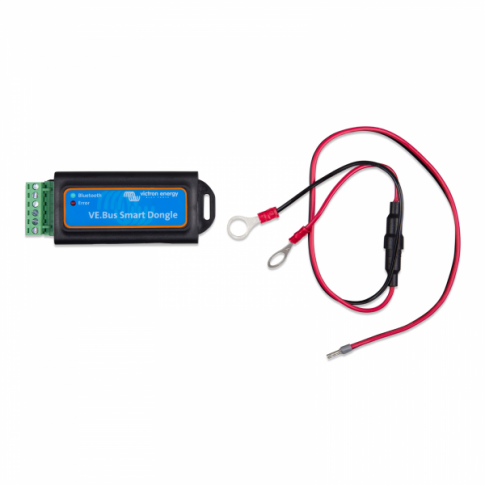

What’s Included

• Victron VE.Bus Smart Dongle
• Removable terminal block
• Black battery-negative lead with M10 eyelet
• Red battery-positive lead with M10 eyelet and inline fuse
