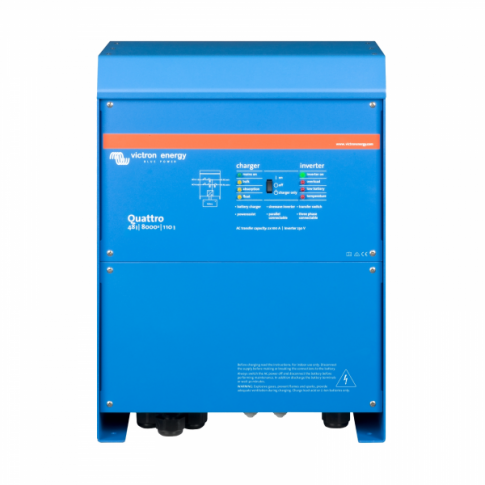

• Victron Quattro Inverter Charger - 48/8000/110-100/100

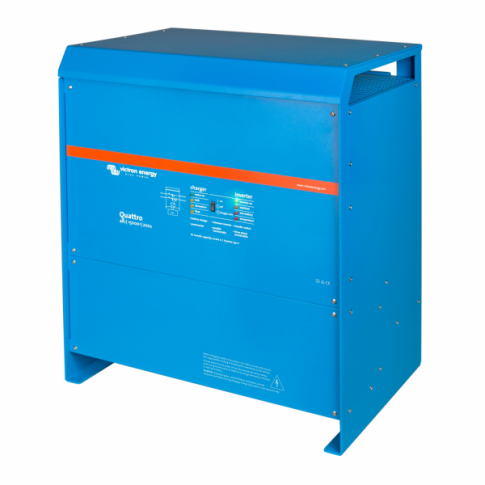

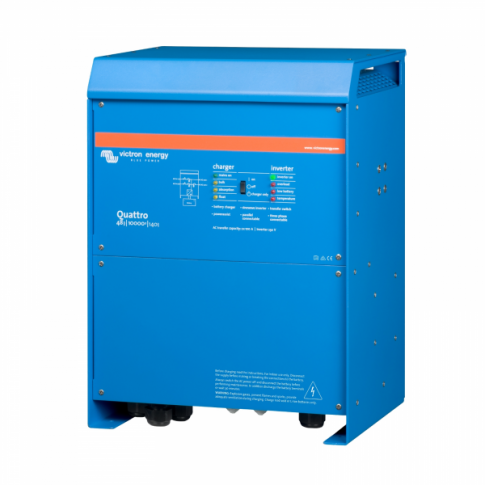

  • Victron Quattro Inverter Charger

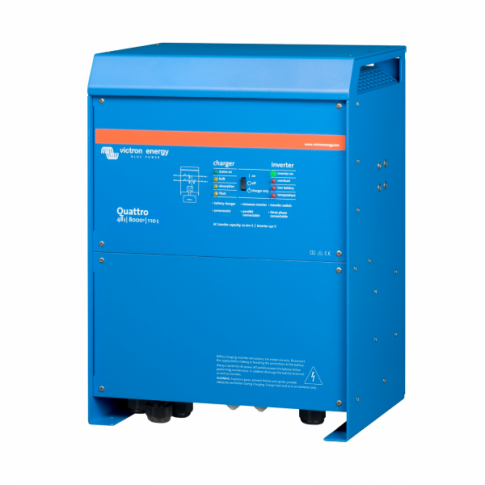

  • Victron Quattro Inverter Charger

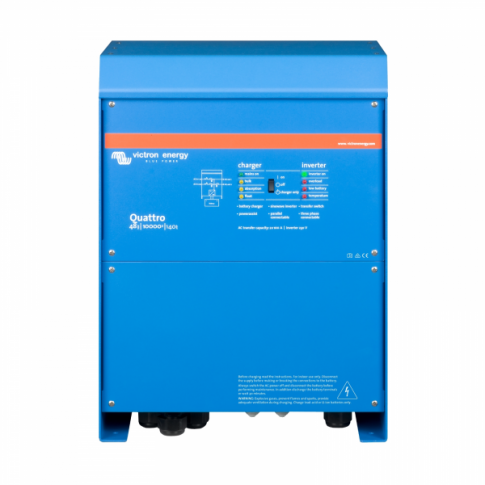

  • Victron Quattro Inverter Charger - 48/10000/140-100/100

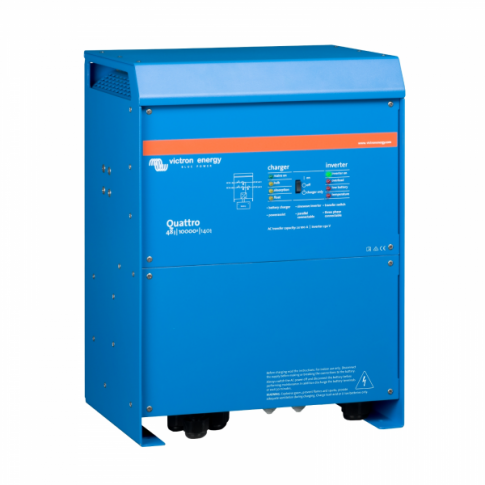

  • Victron Quattro Inverter Charger

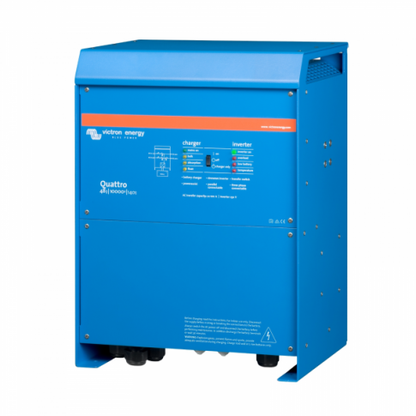

  • Victron Quattro Inverter Charger

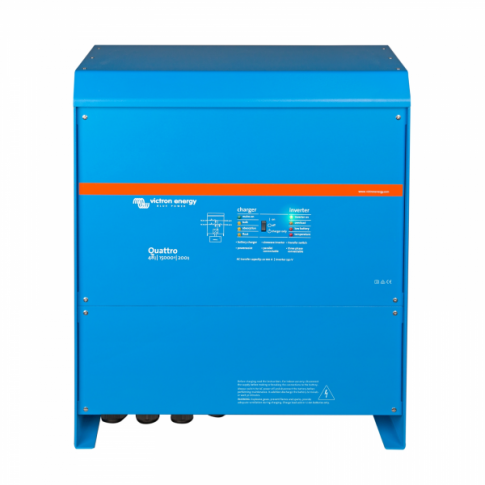

  • Victron Quattro Inverter Charger - 48/15000/200-100/100

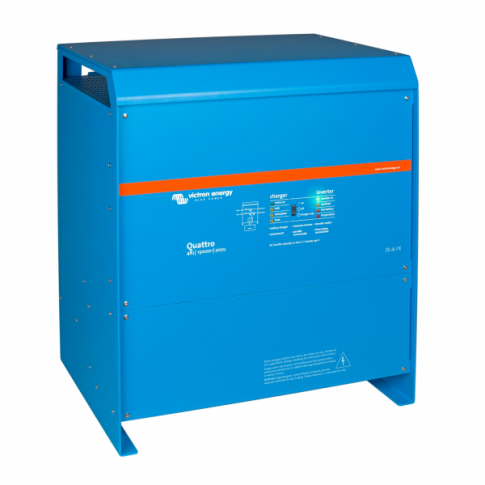

  • Victron Quattro Inverter Charger

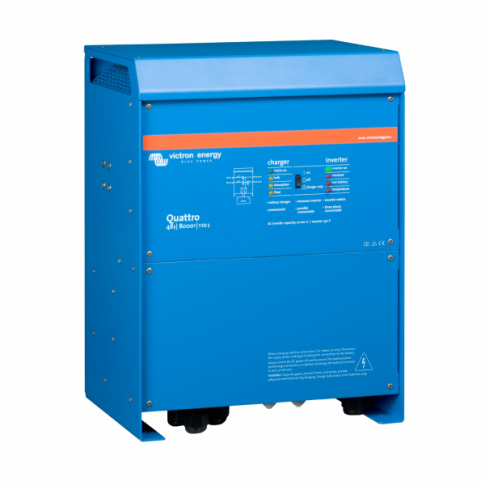

  • Victron Quattro Inverter Charger

Victron Quattro 48V 230V Inverter Charger – 8kVA to 15kVA

Victron Quattro 48V 230V Inverter Charger – 8kVA to 15kVA

5 in stock
£1,449.95
£1,449.95
Tax included. Shipping calculated at checkout.
Model

Trusted UK Supplier

  • 14-Day money back guarantee T&C's Apply
  • Fast Free Shipping on Orders Over £99
  • Real advice from campervan specialists

The Victron Quattro combines a 48V inverter, adaptive battery charger and automatic transfer system in one unit. Its two AC inputs can accept separate supplies such as mains and a generator, automatically selecting the active source.

PowerControl limits demand on restricted incoming power, while PowerAssist supplements it from the battery during peak loads. Two AC outputs separate essential equipment from loads that should operate only when external AC power is available. Choose the required 8000VA, 10000VA or 15000VA model.

Key Features

  • Two independently configurable AC inputs
  • Two AC outputs with no-break supply on the main output
  • PowerControl and PowerAssist technology
  • Adaptive battery charging
  • VE.Bus monitoring and system integration
  • Supports suitable parallel and three-phase installations

Specifications

Variant Output at 25°C Output at 40°C Peak power Charger AC feed-through
48/8000/110-100/100 8000VA / 6400W 5500W 16000W 110A 2 × 100A
48/10000/140-100/100 10000VA / 8000W 6500W 20000W 140A 2 × 100A
48/15000/200-100/100 15000VA / 12000W 10000W 25000W 200A 2 × 100A
Shared specification Detail
Battery voltage 48V
DC input range 38–66V
AC input 187–250V AC, 50/60Hz
AC output 230V AC ±2%, 50Hz ±0.1%
Maximum efficiency Up to 96%
Communication VE.Bus
Protection rating IP20
Operating temperature -20°C to +60°C



Compatibility

For correctly designed 48V battery systems with sufficient capacity and discharge capability for the selected model. Battery charging parameters and BMS integration must match the connected battery system.

Fitment / Wiring Note

These are high-power inverter chargers requiring professionally designed DC cabling, battery protection, AC protection, earthing and ventilation. Installation and configuration must follow the model-specific Victron manual and applicable electrical regulations.

What’s Included

  • Victron Quattro inverter charger in the selected model
  • Battery-temperature sensor
