20AMP PWM DUAL BATTERY CHARGE CONTROLLER

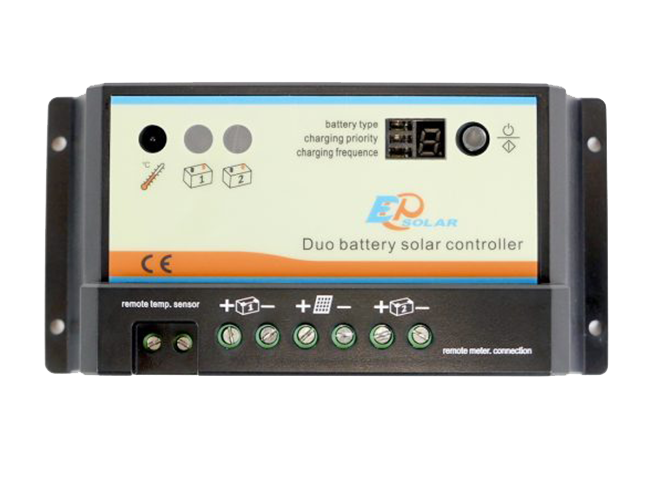

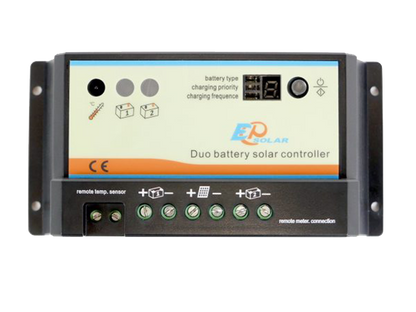

Dual Battery Controller 20A - 12V/24V

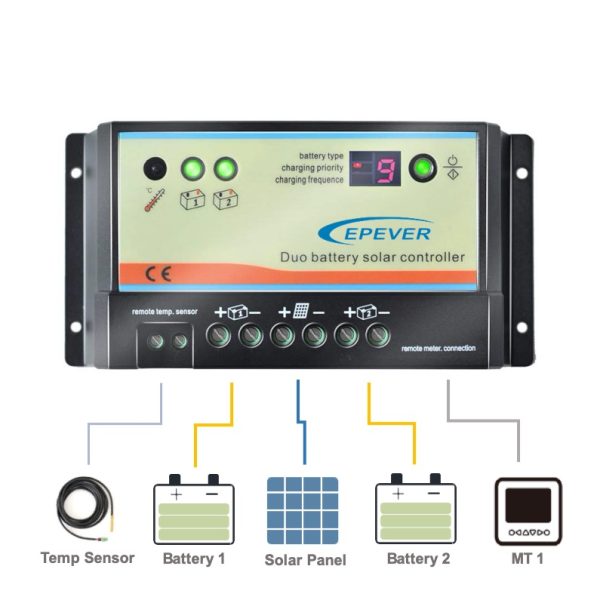

This controller is ideal for use with motorhomes, caravans, boats or anywhere there are two independent batteries for instance a starter battery and a leisure battery.

The Charging percentages for each battery can be set manually if required.

Features

Maximum Solar Input Power: 240 Watts @ 12V - 480 Watts @ 24 Volts

Battery type selection: Sealed, Flooded or Gel

Two battery charging priority (from 0-100%)

Battery temperature sensor

Optional Remote meter (see options and related products below)

PWM charging, different frequency option

Over charging, short-circuit, reverse polarity & reverse current to PV Protection

Intended use:

For use with solar panels up to a maximum of 20A
