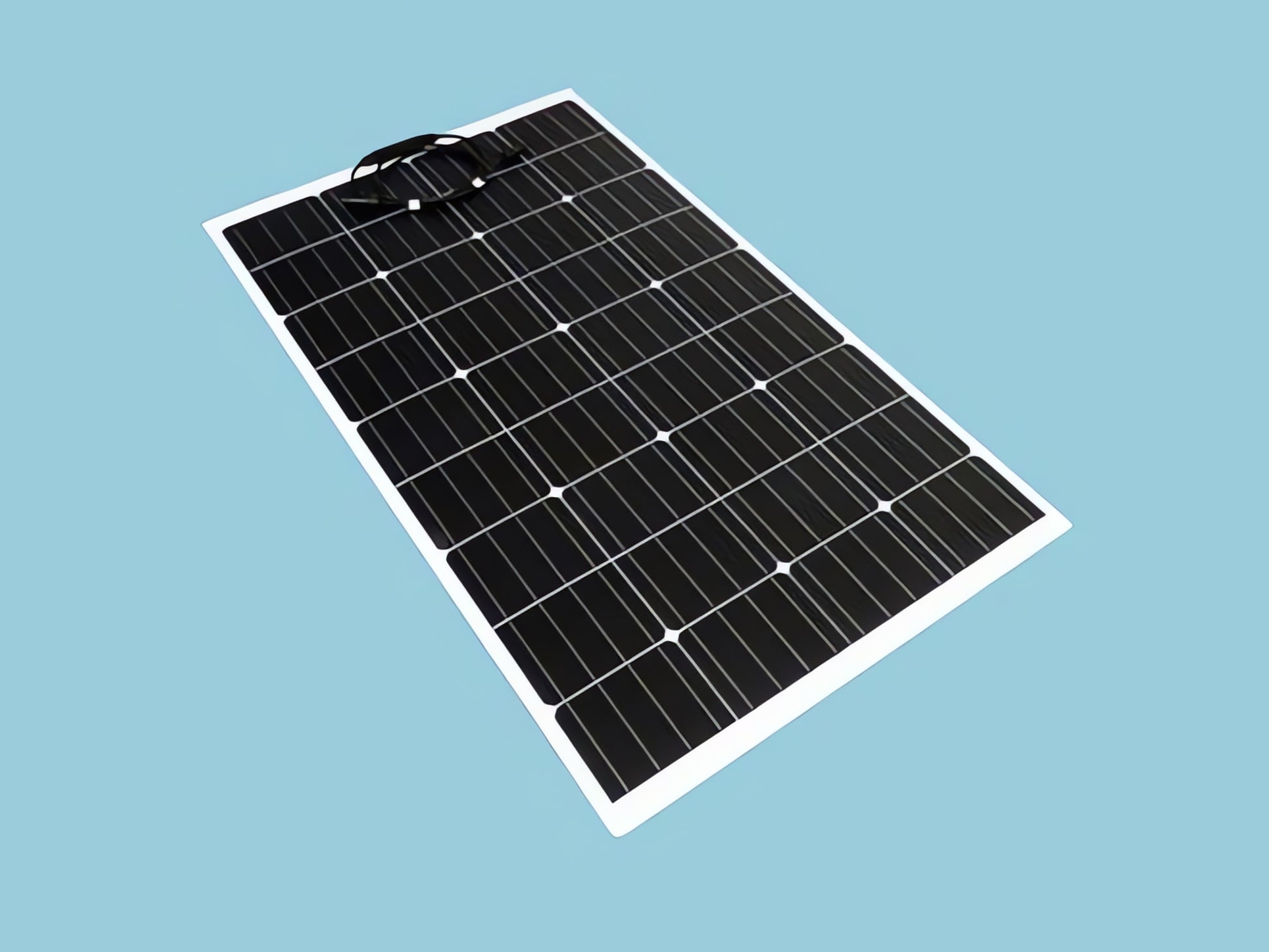

120W FLEX SOLAR PANEL, CABLE & COVER

With a Curve 120W 12V solar panel you could expect to generate around 34 amps per day.

Multiple panels can be connected to acquire higher power if needed.

SPECS

Maximum Power (Pmax): 120W

Maximum Power Current (Ipm): 6.7A

Maximum Power Voltage (Vpm): 18V

Short Circuit Current (Isc): 7.2A

Open Circuit Voltage (Voc): 21.6V

Norminal Operating Cell Temp. (NOCT): -45 to 80??C

Maximum System Voltage: DC600V

Maximum Series Fuse: 9A

Size: 1030 x 665 x 4mm

Weight: 3.65kg

FEATURES

3?? flexibility or 3cm per 1m of panel length

ETFE rough scratch resistant surface which can be walked on in deck shoes.

Highly efficient monocrystalline cells

Can be conveniently placed on curved solid surfaces

Can be easily bonded using fixing adhesive (no need for drilling)

4mm Single Core Cable fitted with type MC4 Connectors (length 900mm)

IN THE KIT

1 x Solar Panel 120W 12V Monocrystalline

2 x 6m 4mm Single Core Cable

1 x Waterproof Cable Entry Cover

MCA Connectors

*** CHARGE CONTROLLER SOLD SEPARATELY ***
